Music Bell Timer - SEIKO QBT-201 dan QBT-30

SEIKO Bell Timer atau Programmable Clock, terbaru saat ini adalah type QBT-30 menggantikan type lama QBT-201 secara functions adalah sama persis, hanya saja BELL TIMER QBT-201 ini terdiri dari 4 lagu dan MUSIC TIMER QBT-30 memiliki 10 lagu tertanam secara built in di dalamnya.  Masing - masing mempunyai 2 channel electrical Independent Output yang bisa dihubungkan perangkat listrik / elektronik.

Music Bell Timer untuk Pabrik

Timer Clock diproduksi oleh SEIKO Jepang ini terkenal karena handal, akurat, dan presisi tinggi. Kami sanggup implementasi di seluruh Indonesia dengan biaya implementasi yang terjangkau dan bergaransi.

SEIKO Bell Timer QBT-201

Programmable Bell Timer QBT-201 dan QBT-30

Quartz Bell Timer

RoHS



■ QBT-201
Announces the start of work, lunchtime, and the end of work with beautiful melodies.
Refined design and outstanding function make this a necessity for every office.


■ Up to 60 programs can be set a week at a time.
■ Different settings for each day of the week are OK.
 Resetting for different times each day is simple and convinient.
■ The 4 melodies can be combined as preferred.
■ External output can be used to manage lighting, air-conditioning, and so on.


[Specification]

Input power supply
AC 100V-120V, AC 200V-240V, 50/60Hz
Power consumption
10W
Power failure backup
Clock : 10 hours, program : 2 weeks
Operating
temperature range
-10℃~+50℃
Time accuracy
Within ±5 sec./month(+5~+35℃)
Signal output
2 independent channels
(dry contact signal)
Contact out put
capacity
AC 125V/5A, AC 250V/3A, DC 30V/5A
Program
setting range
In 1 minute increments
Melody output
[4 melodies are preset for hourly time signal.]
Westminster Bell: 36Sec.
Baby Elephant Walk: 36Sec.
Music Box Dancer: 36Sec.
Edelweiss: 36 sec.

[Built in speaker]
500 mW
[Line output]
150 mV (47k)
Dimensions
W372 x H270 x D62.4mm
Dial diameter : ø249.5mm
Weight
Approx. 2.0kg(main body)

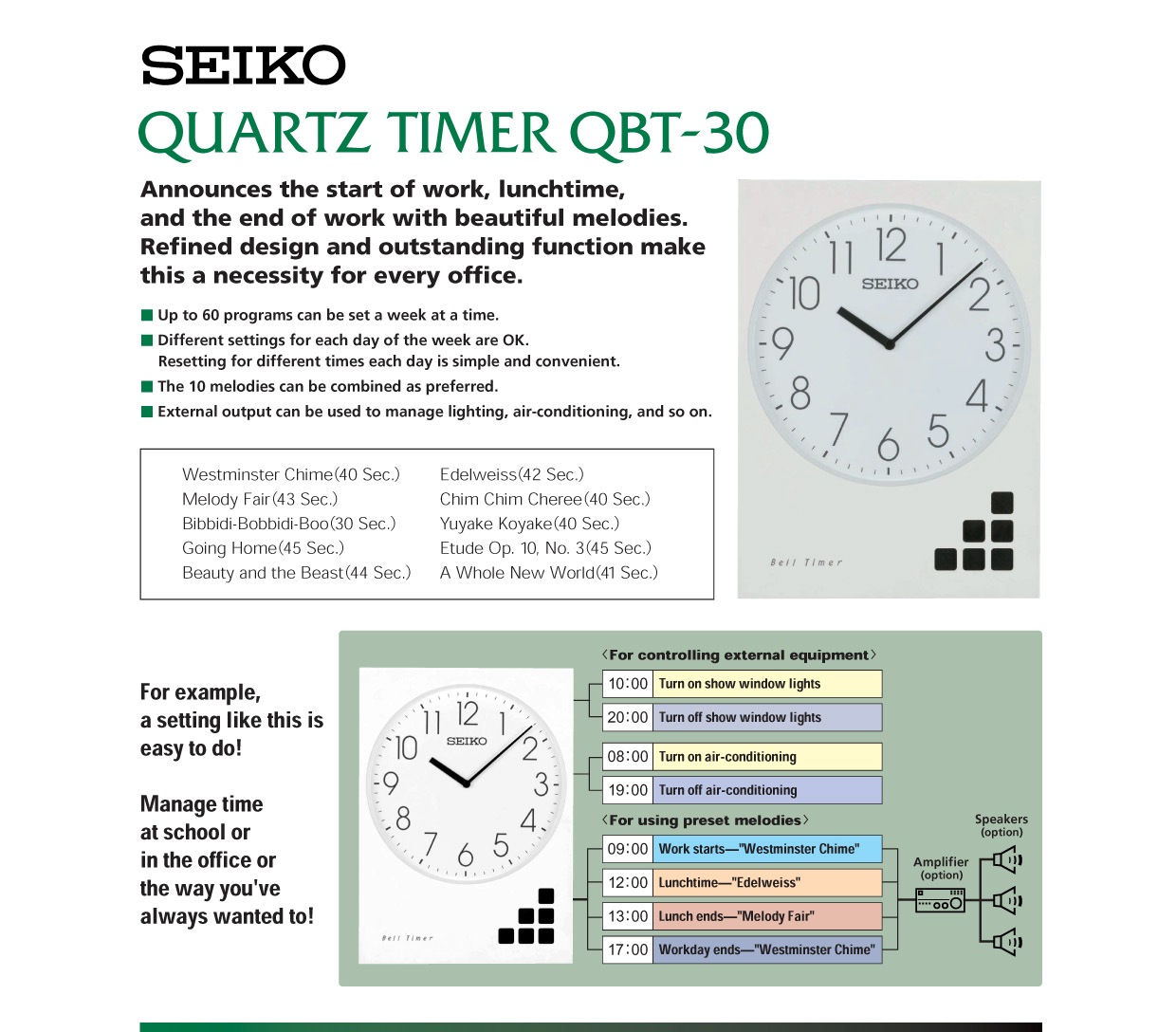

■ QBT-30
Announces the start of work, lunchtime, and the end of work with beautiful melodies.
Refined design and outstanding function make this a necessity for every office.


■ Up to 60 programs can be set a week at a time.
■ Different settings for each day of the week are OK.
 Resetting for different times each day is simple and convinient.
■ The 10 melodies can be combined as preferred.
■ External output can be used to manage lighting, air-conditioning, and so on.


[Specification]
Input power supply
AC 100V-120V, AC 200V-240V, 50/60Hz
Power consumption
4.0W
Power failure backup
Clock : 24 hours, program : 10 years
Operating
temperature range
-10℃~+50℃
Time accuracy
Within ±3 sec./month(+5~+35℃)
Signal output
2 independent channels
(dry contact signal)
Contact out put
capacity
AC 125V/5A, AC 250V/3A, DC 30V/5A
Program
setting range
In 1 minute increments
Melody output
[10 melodies are preset for hourly time signal.]
Westminster Chime: 40Sec.
Edelweiss: 42 sec.
Melody Fair: 43 sec.
Chim Chim Cheree: 40 sec.
Bibbidi-Bobbidi-Boo: 30 sec.
Yuyake Koyake: 40 sec.
Going Home: 45 sec.
Etude Op. 10, No.3: 45 sec.
Beauty and the Beast: 44 sec.
A Whole New World: 41 sec.

[Built in speaker]
500 mW
[Line output]
150 mV (47k)
Dimensions
W270 x H372 x D58.5mm
Dial diameter : ø249.5mm
Weight
Approx. 2.0kg(main body)


 Spesifikasi Teknis dan DataSheet SEIKO QBT-201

Catalog SEIKO Programmable QBT-30
